HyperDrive 4K Multi-Display Docking Station For 13”-14” MacBook Pro

Connect Up To 2 Displays at 4K 60Hz

Give your 13-14” MacBook, Chromebook, or PC the ability to connect to 2 extended displays with native 4K HDMI/DP video.

Use HDMI Or DisplayPort

Whether you need to connect to an HDMI or DisplayPort monitor, our 2 HDMI or 2 DisplayPorts give you the flexibility to support dual displays, your way.

Easy Driverless Setup

Forget about having to download additional software, simply just plug and play, and you’re ready to go.

Enjoy 13 Essential Ports

Expand your 13”-14” Macbook’s connectivity with 13 ports including HDMI 4K 60Hz x 2, DP 4K 60Hz x 2, MicroSD/SD slots, 1Gb Ethernet, USB-C 10Gbps x 2, USB-C PD 100W, USB-A 10Gbps x 1, and USB-A 5Gbps x 2.

Ergonomic, Heat Dissipating Design

Our advanced ergonomic design fits seamlessly underneath your 13-14” MacBook’s chassis, elevating your device for a more pleasant user experience while allowing for better heat dissipation.

Minimize Workspace Clutter

With our minimalist design, you’ll enjoy more connection without any pesky wires or dongles.

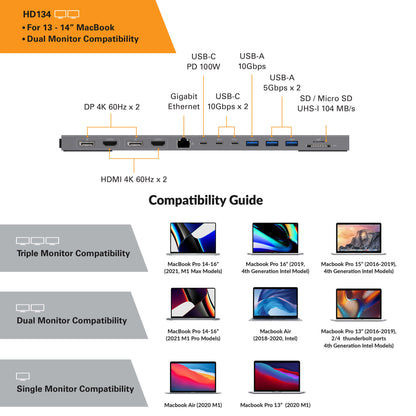

Ports

• DP 4K60Hz x 2
• HDMI 4K60Hz x 2
• MicroSD UHS-I 104MB/s
• SD UHS-I 104MB/s
• 1Gb Ethernet
• USB-A 10Gbps x 1
• USB-A 5Gbps x 1
• USB-C 10Gbps x 2
• USB-C Power Delivery 100W

Model

HD134

Dimensions

295mm x 52mm x 16.52 mm
10.1” x 2” x 0.6”
Cable Length: 100mm

Weight (without cables)

254.2g / 8.9 oz / 0.5 lb.

Compatible Devices

• MacBook Pro 2016 or later 13”-14”*
• MacBook Air 2018 or Later 13”-14”*
• Windows PC’s supporting MST, with dual Thunderbolt 3/4, USB 3.0 or later Type C with DP Alt-Mode
• M1/M2 MacBook (2020 MacBook 13"Air & 2020 MacBook 13"Pro) will not support multi-display connectivity, but will be compatible with the rest of the dock’s ports.

Video Connections

DP#1 or HDMI#1 on Primary Module support 3840 x 2160P 60Hz for single/dual display.
DP#2 or HDMI#2 on Primary Module, max resolution for HDMI2 supports 3840 x 2160P 60Hz, max resolution for DP2 supports 7680 x 4320 30Hz (Mac support 5K or 6K depends on Mac device), single display supported in this group.

Product Compatibility

MacBook (M1/M2 Max/Pro, Intel), Lenovo, Dell,HP, Windows PC

System Requirements

MacOS, Windows 7, Windows 8, Windows 10

Host Connectivity

USB-C PD3.0 20V/5A.USB 3.2 Gen 1 Data

Network Connections:

RJ45, 10/100/1000 Mbps

Data Connections:

Max data transmission for 3x USB3.1 ports (USB-A3+USB-C1+USB-C2) support 10Gbps (1280MB/s), backward compatible with USB3.0 5.0Gbps (640MB/s) and USB2.0 480Mbps (60MB/s).
Max data transmission for 2x USB3.0 ports (USB-A1+USB-A2) support 5.0Gbps (640MB/s)and USB2.0 480Mbps (60MB/s).

Material Specifications:

Aluminum Housing

Certifications:

FCC, UKCA, ROHS, REACH
